CEESYNC™



The ultimate solution for PPS time synchronisation.



CEESYNC™ provides a high quality PPS splitting and synchronization solution for multibeam echo sounder installations, compatible with all industry standard GNSS receivers.

GET A QUOTE

ceesync-1pps-box

Double web

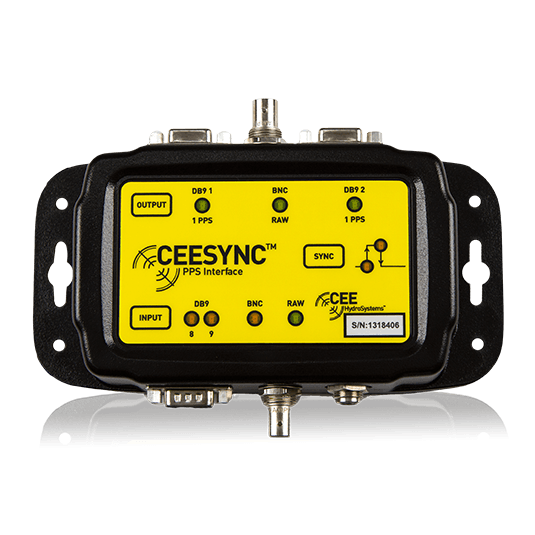

With DB9 and BNC inputs and dual DB9 outputs, the CEESYNC™ effectively splits and modulates the 1 pulse per second (1PPS) signal for multibeam echo sounder installations that require a modified or split pulse. The CEESYNC™ is a high quality replacement for weak-link components or cables.

LEARN MORE:

The CEESYNC™ has a wide DC voltage input range and can be powered via a USB port on a PC for simplified installation. A simple membrane configures inputs and outputs. The unit features 9 LEDs to display current system status. The 1PPS pulse modulation as required by HYPACK® software is enabled, where the timing signal needs to be directly connected to the acquisition PC in addition to the echo sounder.

The 1 Pulse Per Second is an electrical signal that has a width of less than one second and a sharply rising or falling edge that accurately repeats once every second. The 1PPS signal is output by many GPS / GNSS receivers as derived from the precise GPS system time. This signal can be used to accurately time stamp data from multibeam echo sounders and single beam echo sounders such as the CEESCOPE™.

Eliminate existing splitter cables or makeshift and low grade electronics components. The CEESYNC™ is manufactured to the same exacting standards as the rest of the CEE HydroSystems product range. In an indestructible enclosure with high quality connectors and membrane buttons with LED indicators, the CEESYNC™ ensures that there no longer needs to be a weak link in a multibeam echo sounder installation where PPS splitting is required.

PRODUCT INFORMATION

dual split

BNC to dual DB9 splitter.

USB.1

Powered by PC USB port.

waterproof

Waterproof sealed enclosure.

construction

Indestructible construction.

Physical
Dimensions18 x 9 x 4 cm (L x W x D)
7.1" x 3.5" x 1.6"
DisplayStatus LEDs
Weight450 g (1 lbs)
ColourBlack
ConnectorsBNC, DB9 and 2.5 mm power jack
Environmental
Operating temperature0°C – 50°C (32°F – 122°F)
Humidity95% non condensing
Ingress protection ratingIP67
Power
Power consumption0.3 watts
Power supplyNominal 5.0 VDC @ 100 mA (5-24 VDC range)
PPS Inputs
User configurableDB9 pin 8, DB9 pin 9 or BNC

Data Outputs
DB9 1Modulated PPS (pin 8)
DB9 2Modulated PPS (pin 8)
BNCRaw PPS pass through
